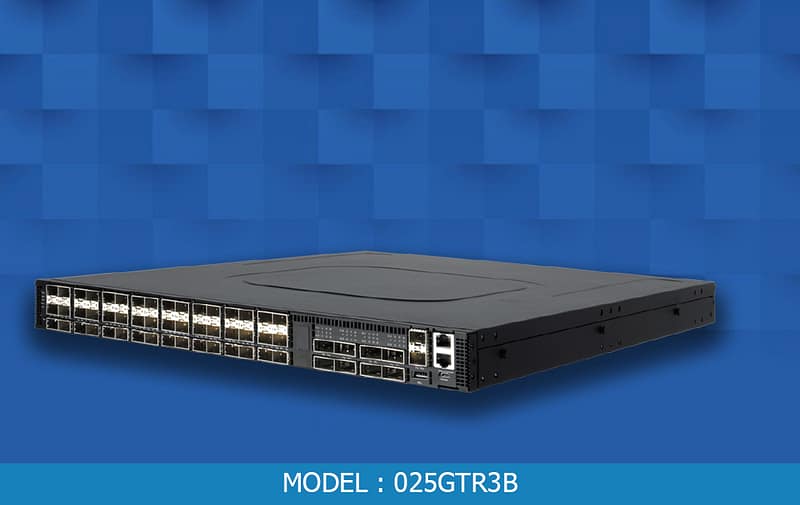

The 025GTR3B baremetal appliance is a Top-of-Rack (TOR) appliance for high-performance data centers. In a compact 1RU form factor, the DSSOLDQFH provides line-rate L2 and L3 switching across the 48 x SFP28 + 8 x QSFP28 ports, and each QSFP28 port can be configured as 4 x 25 GbE, 1 x 40 GbE, or 4 x 10 GbE by using DAC breakout cables. The *75% can be deployed as a TOR switch depending on the operating system installed by user supporting 10/25 GbE to servers with 40/100 GbE uplinks. This open network switch is loaded with the Open Network Install Environment (ONIE), which supports the installation of compatible Network Operating System (NOS) soſtware, including the open source plus commercial NOS offerings.
Key Features and Benefits
■ Cost-effective, Bare-Metal/open network switch appliance for data center fabric.
■ Deploy as Top-of-Rack switch supporting 10 or 25 GbE to servers, with 40 GbE, or 100 GbE uplinks.
■ 48 x SFP28 + 8 x QSFP28 switch ports, each QSFP28 supporting 1 x 100 GbE or 1 x 40 GbE, or via breakout
cables, 4 x 25 GbE, or 4 x 10 GbE.
■ Layer 2 or Layer 3 forwarding of 4 Tbps (full duplex).
■ Supports hot/cold aisles with port-to-power and power-to-port airflow SKUs.
■ All ports on front; PSUs and fans accessible from rear.
■ Hot-swappable, load-sharing, redundant AC or -48V DC PSUs.
■ 5+1 redundant, hot-swappable fan modules.
■ Energy efficient.
■ Hardware switch pre-loaded with Open Network Install Environment (ONIE) for automated loading of
compatible open source and commerical NOS offerings.
