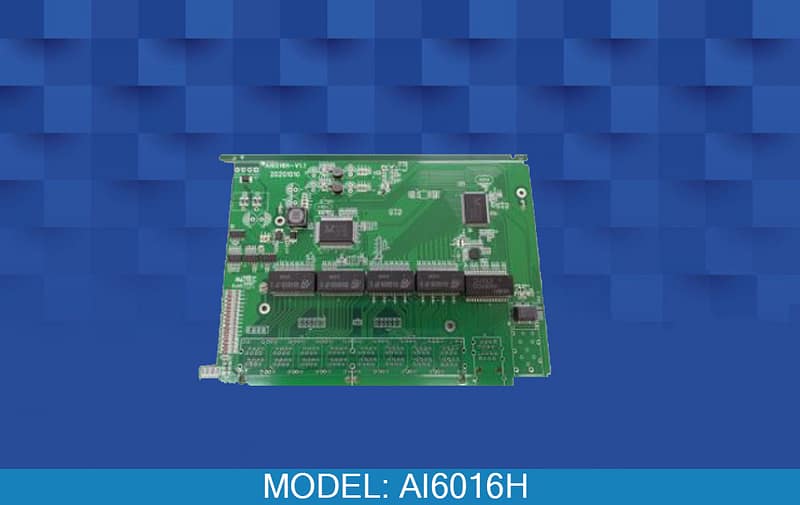

AI6016H PCB model is a semi assembled PCB suitable for developing and manufacturing Non-POE and POE ethernet switches. Depending on design application this PCB can be used to design and develop switches with up to 16 10/100 + 2x 1G RJ45 + 1x SFP ports and it helps designers to also develop a 16×10/100 POE switch in addition to designing a simple 16 to 19 port unmanaged non-POE switch .
- It can provide possibility to design and develop switches with up to 16* 10/100Mbps RJ45 + 2x 1G RJ45 + 1x SFP ports.
- SDK(Software development kit) makes it possible to develop unmanaged switch with different port combination such as 16×10/100 POE or non-POE ports and 2x 1G RJ45 + 1x SFP ports.
- Depending on design needs it can support IEEE802.3af/at, and a single port output maximum power of 30W
- Depending on application it can provide possibility to design POE switches with output power from 150W.
- SDK provides support for developing a switch with 5 working modes in unmanaged mode through using DIP switch.
- Switching chip supports Store and forward
