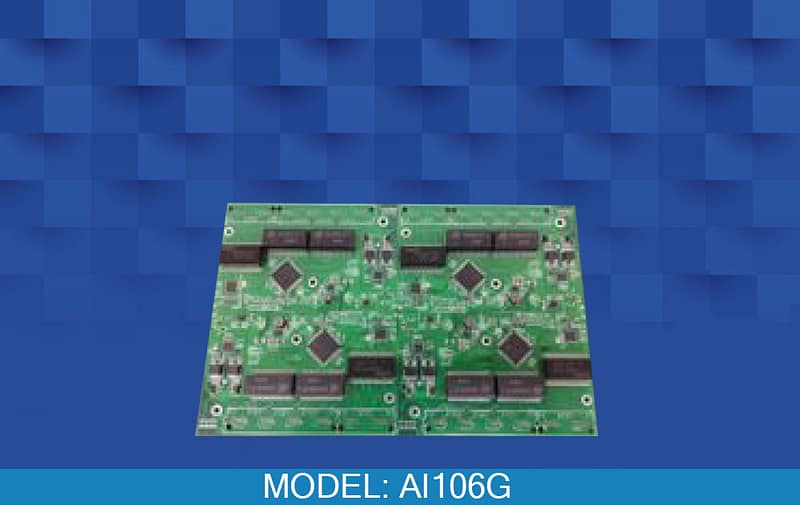

AI106G PCB model is a semi assembled PCB suitable for developing and manufacturing Non-POE and POE ethernet switches. Depending on design application this PCB can be used to design and develop switches with up to 6 10/100/1000 ports and it helps designers to also develop a 4×10/100/1000 POE switch in addition to designing a simple 4 to 6 port unmanaged non-POE switch .
- It can provide possibility to design and develop switches with up to 6* 10/100/1000Mbps RJ45 ports.
- SDK(Software development kit) makes it possible to develop unmanaged switch with different port combination such as 4×10/100/1000 POE or non-POE ports and 2×10/100/1000 uplink ports.
- Depending on design needs it can support IEEE802.3af/at, and a single port output maximum power of 30W
- Depending on application it can provide possibility to design POE switches with output power from 60W to 120W.
- SDK provides support for developing a switch with 5 working modes in unmanaged mode through using DIP switch.
- Switching chip supports Store and forward
- It can be used in fanless designs
